1.8" LCD Display for Raspberry Pi Pico

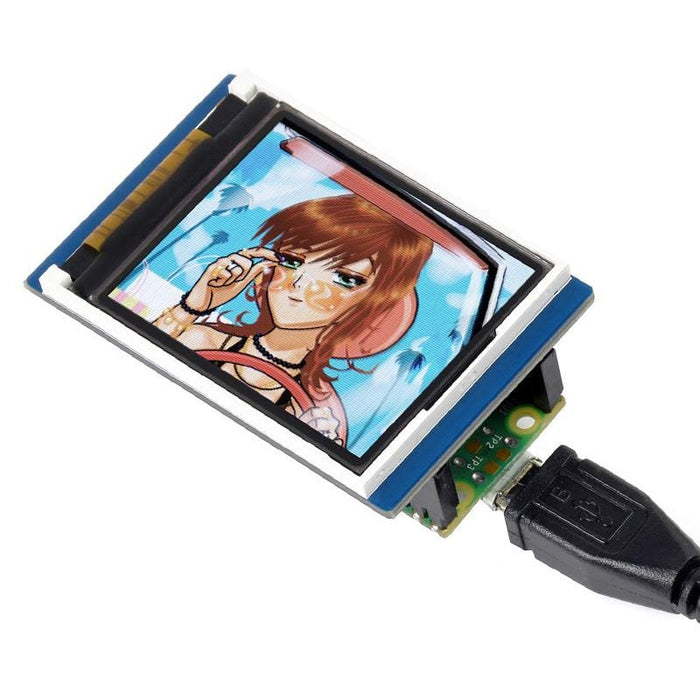

Easily add a clear and colourful display to your Raspberry Pi Pico project with this 1.8" LCD 65K RGB display from Waveshare!

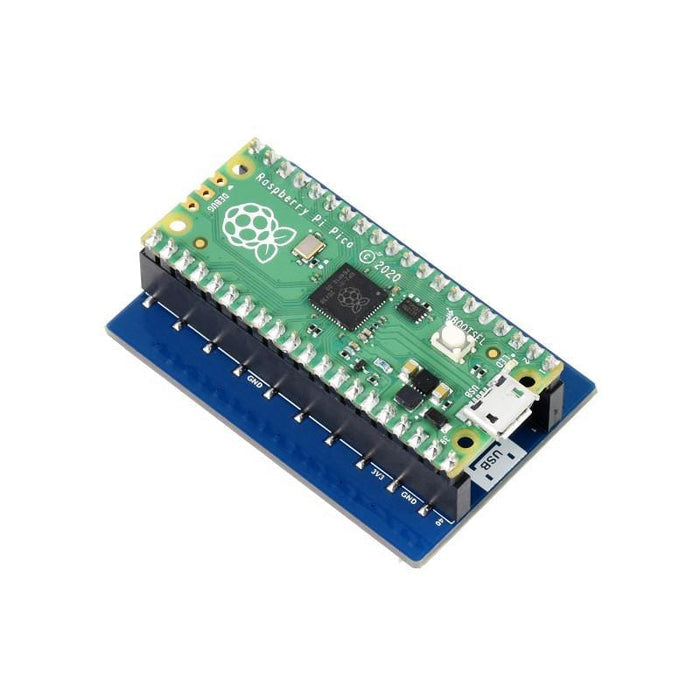

With the included Raspberry Pi Pico C/C++ and MicroPython demos, getting started with this screen is quick and easy. There's also no soldering required with this LCD display - just slot your Pico into the female headers on the rear and you're good to go!

This display uses an embedded ST7735S driver, which uses the SPI bus to communicate with your Pico (leaving the majority of your Pico pins free for other things!).

We also have our own set of tutorials teaching you how to use these displays with MicroPython:

• Colour Control
• Coding Graphics
• Advanced Text/Fonts

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• 1.8" Display
• Fits Raspberry Pi Pico (requires male headers to be fitted)
• 160×128 resolution
• 65K RGB colours, clear and colourful
• SPI interface - requires minimal IO pins
• Online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

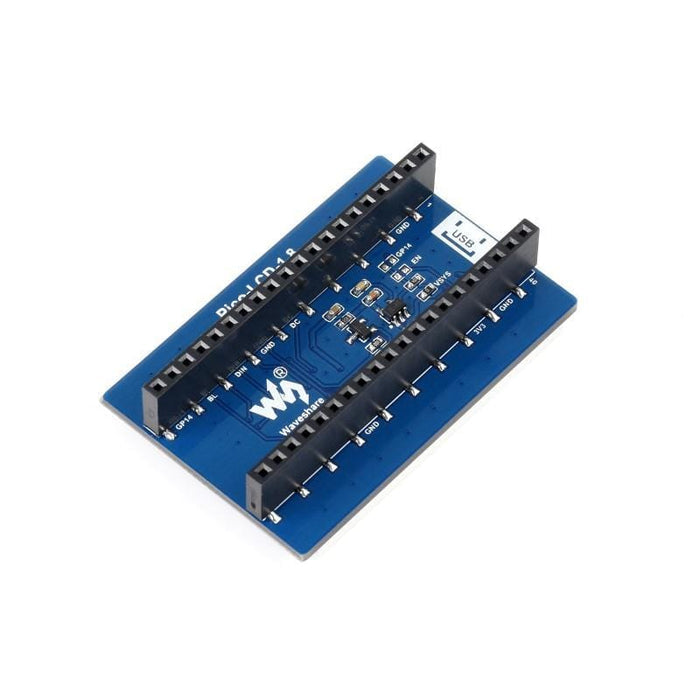

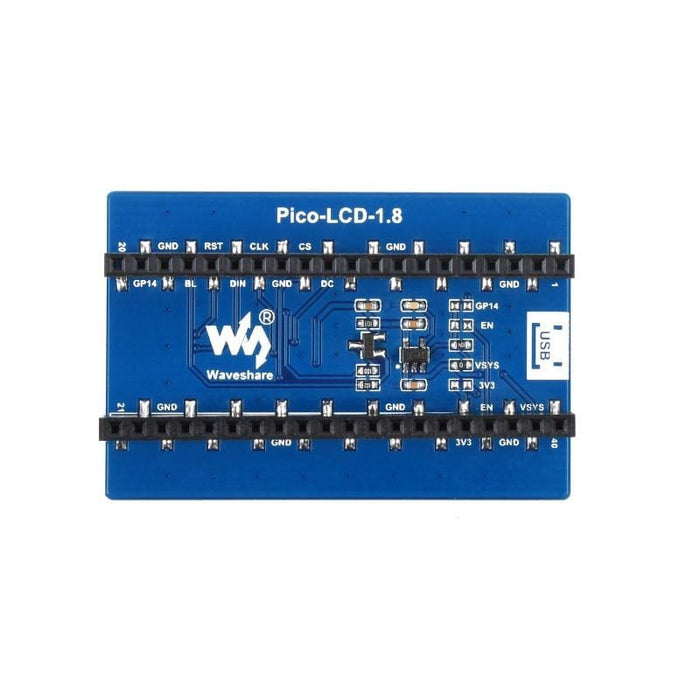

Pinout

Package Contents

• 1x 1.8" Pico LCD

Pico not included

Resources

• Product Wiki
• The Pi Hut Tutorials:
• Colour Control
• Coding Graphics
• Advanced Text/Fonts

Specifications

• Operating Voltage: 2.6-5.5V
• Communication Interface: 4-wire SPI
• Display Panel: TFT
• Driver: ST7735S
• Resolution: 160x129 pixels

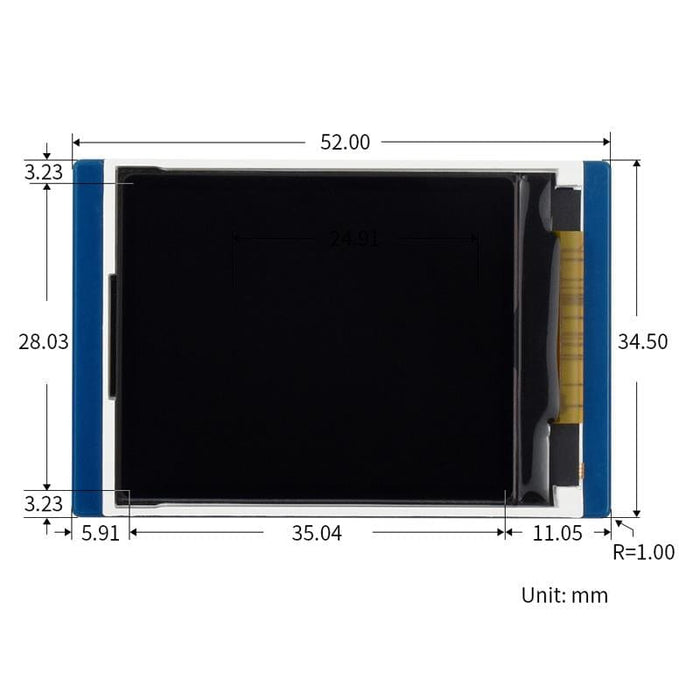

• Display Size: 35.04 x 28.03mm
• Pixel Size: 0.219 x 0.219mm
• Dimensions: 52.0 x 34.5mm
