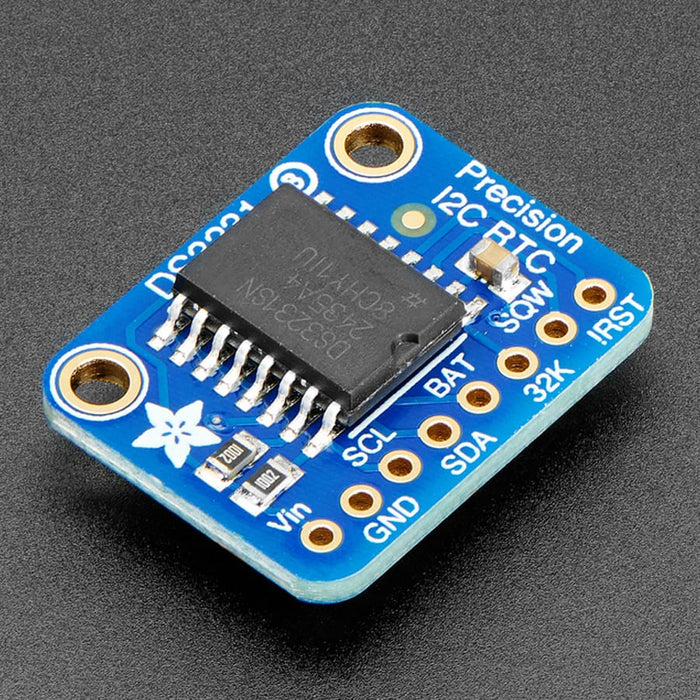

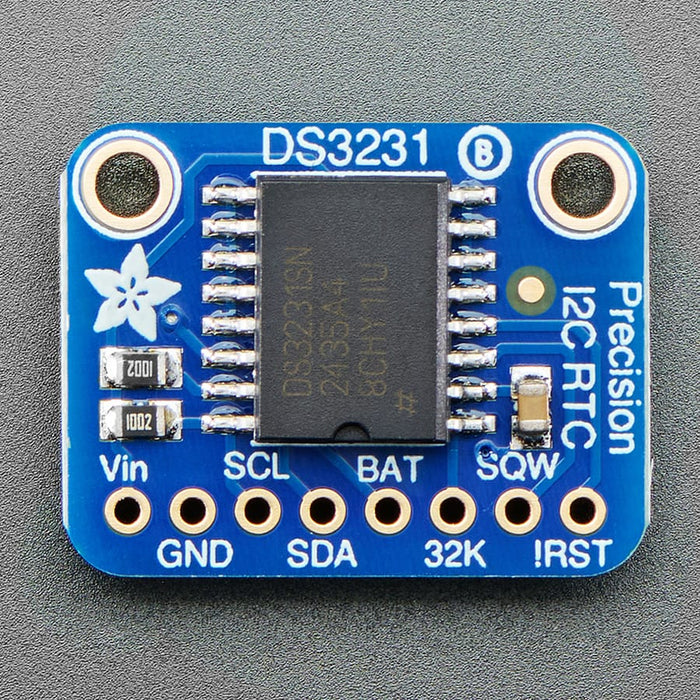

Adafruit DS3231 Precision RTC Breakout

The DS3231 Precision RTC Breakout delivers highly accurate timekeeping with built-in temperature compensation and battery backup—perfect for clocks, data logging, and projects that need reliable time even without power.

The datasheet for the Adafruit DS3231 explains that this part is an "Extremely Accurate I²C-Integrated RTC/TCXO/Crystal". And, hey, it does exactly what it says on the tin! This Real Time Clock (RTC) is the most precise you can get in a small, low power package.

Most RTCs use an external 32kHz timing crystal that is used to keep time with low current draw. And that's all well and good, but those crystals have slight drift, particularly when the temperature changes (the temperature changes the oscillation frequency very very very slightly but it does add up!) This RTC is in a beefy package because the crystal is inside the chip! And right next to the integrated crystal is a temperature sensor. That sensor compensates for the frequency changes by adding or removing clock ticks so that the timekeeping stays on schedule.

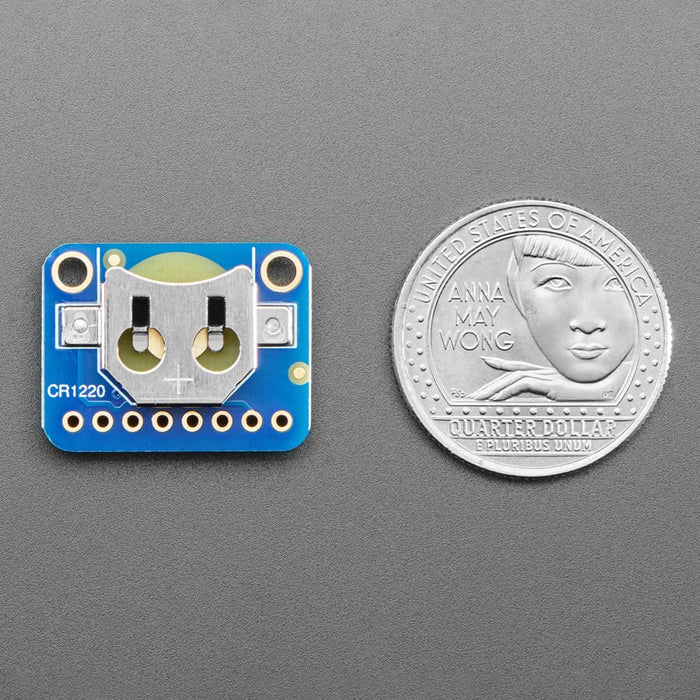

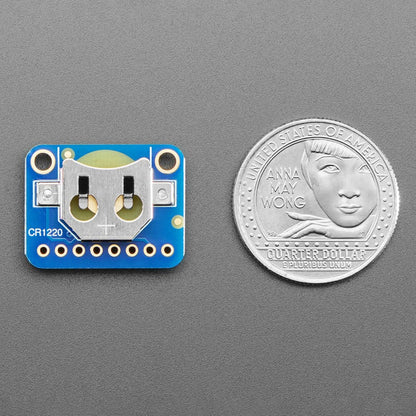

This is the finest RTC you can get, and now we have it in a compact, breadboard-friendly breakout. With a coin cell plugged into the back, you can get years of precision timekeeping, even when main power is lost. Great for datalogging and clocks, or anything where you need to really know the time.

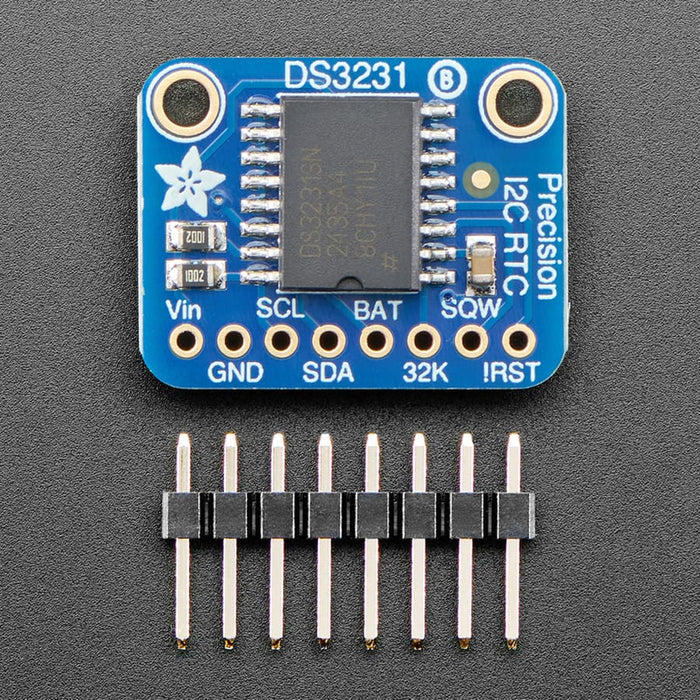

Comes as a fully assembled and tested breakout plus a small piece of header. You can solder header in to plug it into a breadboard, or solder wires directly.

A coin cell is required to use the battery-backup capabilities! We don't include one by default, to make shipping easier for those abroad, but we do stock them so pick one up or use any CR1220 you have handy.

Please note: Coin cell  battery is not included.

Features

• Extremely accurate I²C-integrated Real Time Clock (RTC)
• Integrated crystal oscillator eliminates need for external 32kHz crystal
• Built-in temperature sensor compensates for frequency drift
• Temperature-compensated crystal oscillator (TCXO) technology
• Low power consumption
• Coin cell battery backup for years of operation without main power
• Fully assembled and tested breakout board
• Breadboard-friendly design
• Header pins included for breadboard use or direct wire soldering
• Compact package
• Requires CR1220 coin cell battery (sold separately)

Specifications

• Product Dimensions: 23mm x 17.6mm x 7.2mm
• Weight: 2.1g

Revision History

• As of January 19, 2023 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.

Resources

• Datasheets

Package Contents

• 1x Adafruit DS3231 Precision RTC Breakout
• 1x Header Strip
