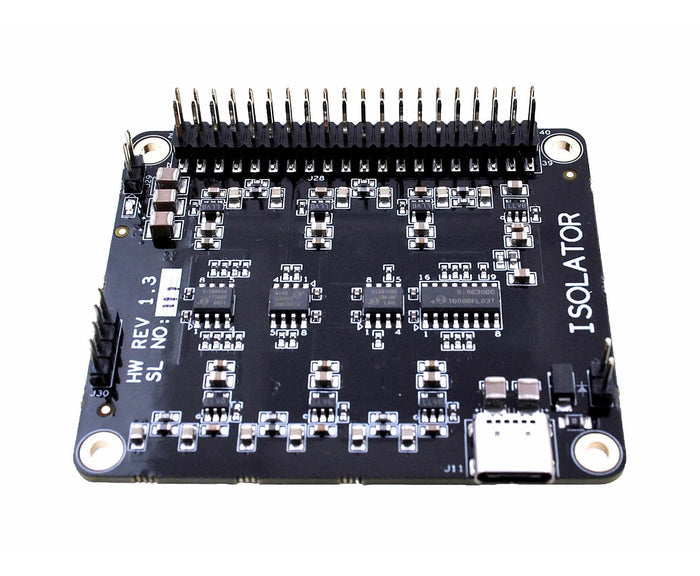

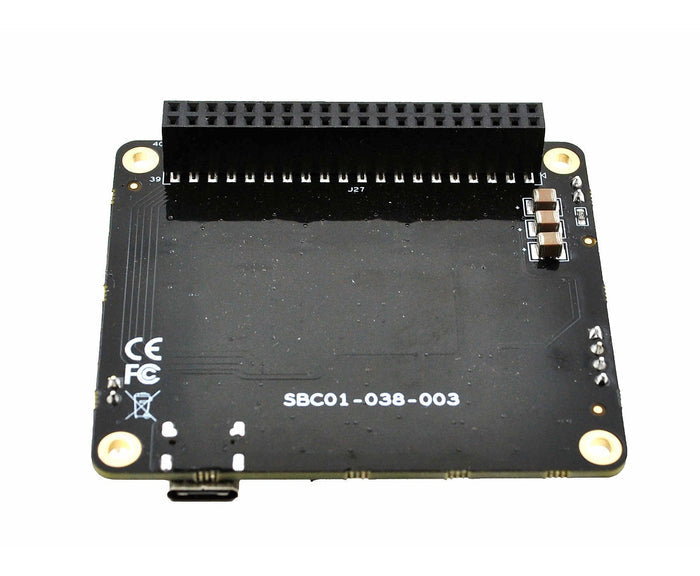

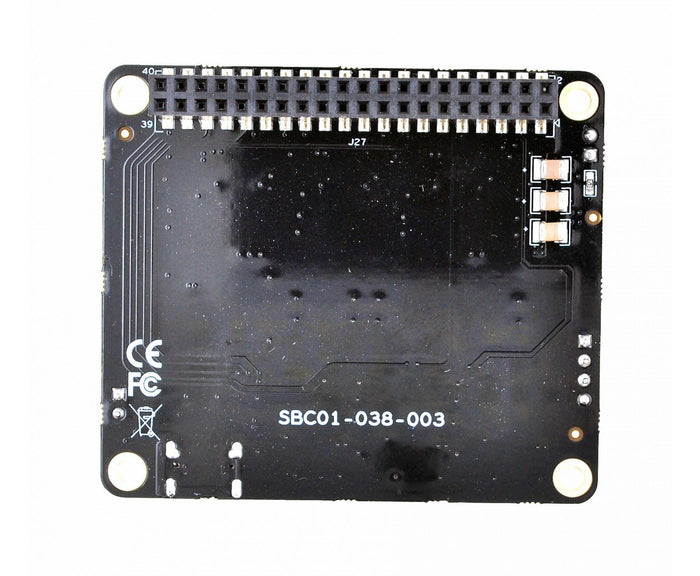

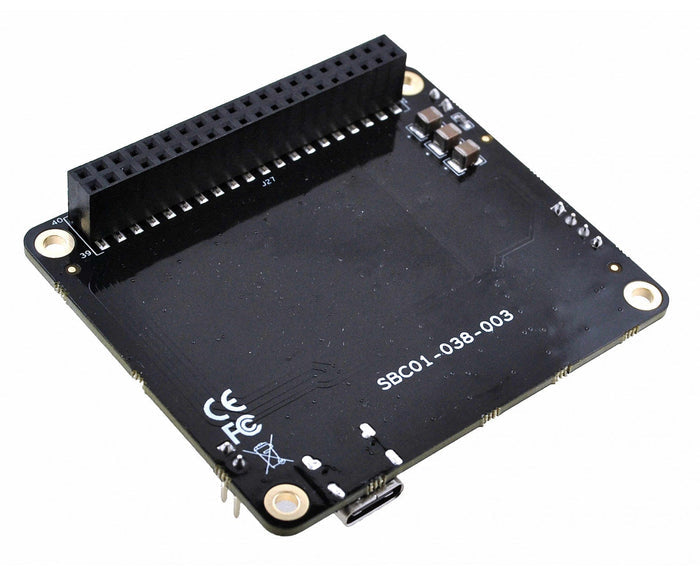

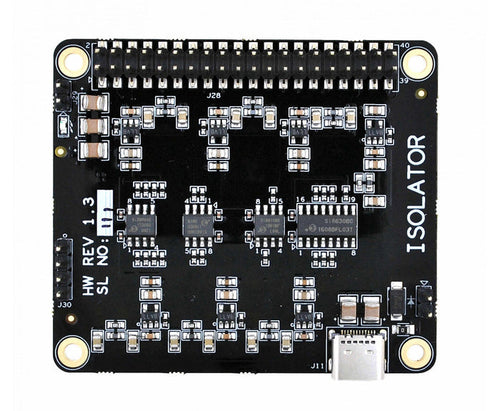

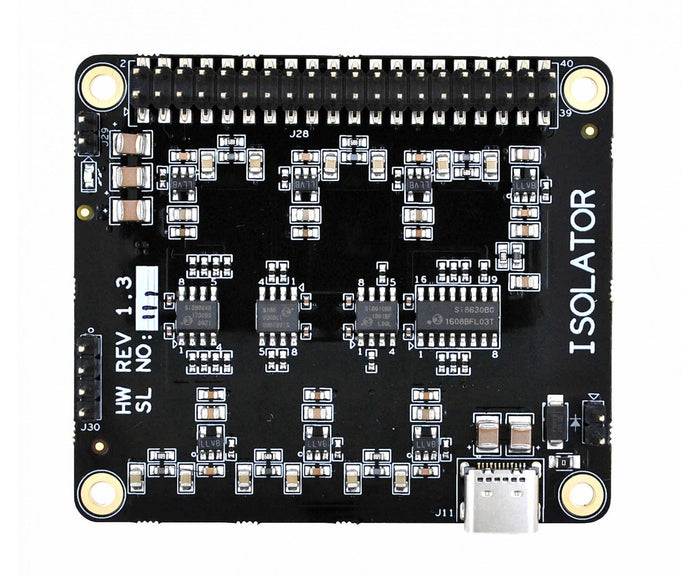

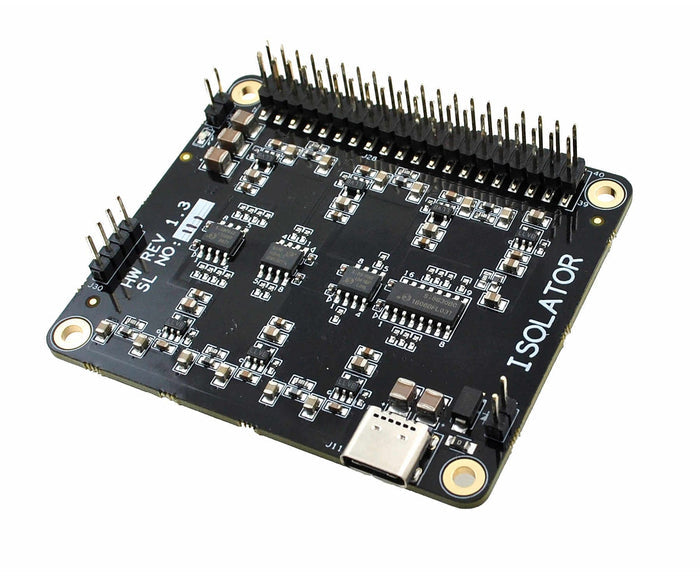

Allo i2s Isolator v1.2 [Discontinued]

Full galvanic isolator, designed to isolate the KATANA and BOSS Master DACs from your Raspberry Pi!

This is the Isolator v1.2!

Isolator HAT has been designed to isolate between an SBC and DAC, and it works on both master and slave DAC’s. By isolating your SBC board from the DAC board, using separate GND and Power supply lines, all possible noise and jitter coming from the source can be stopped and completely isolated prior to the DAC board!

Features:

• Full galvanic isolator between SBC/DAC
• Compatible with Katana & Boss DACs
• Isolated the I2C, I2S and GPIO’s
• We recommend using LIFEPO4 batteries, and the Isolator will in turn provide 5v/06A using LT3042 and 3.3V using LT3042 LDOs.
• Sampling rate supported 44.1k to 192k 16/24/32
• Low noise LDO and filters used for reducing the noise and ripple
