Electronic Clock for Raspberry Pi Pico

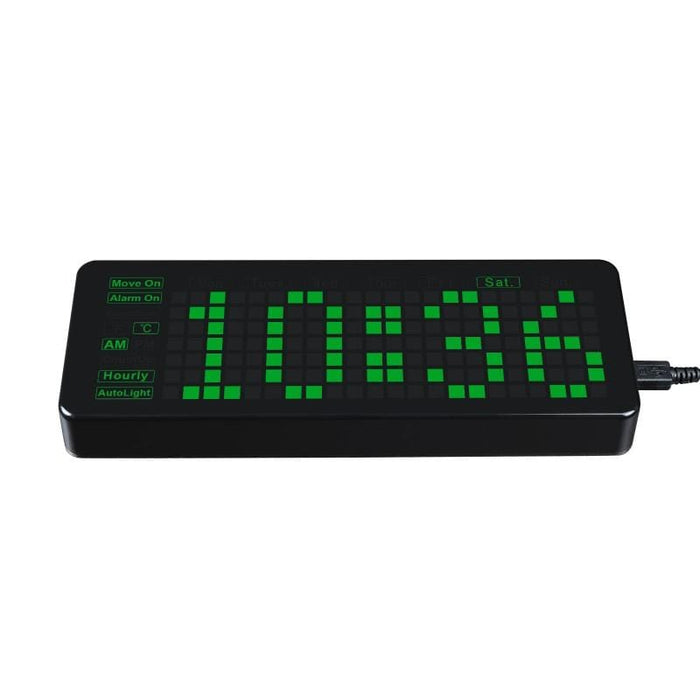

The Electronic Clock for Raspberry Pi Pico is an LED digit electronic clock project designed for the Raspberry Pi Pico!

It incorporates a high-precision Real-time Clock (RTC) chip, photosensor, buzzer and buttons, and features multiple functions including an accurate electronic clock, temperature display, auto-brightness adjustment, alarm and custom button configuration.

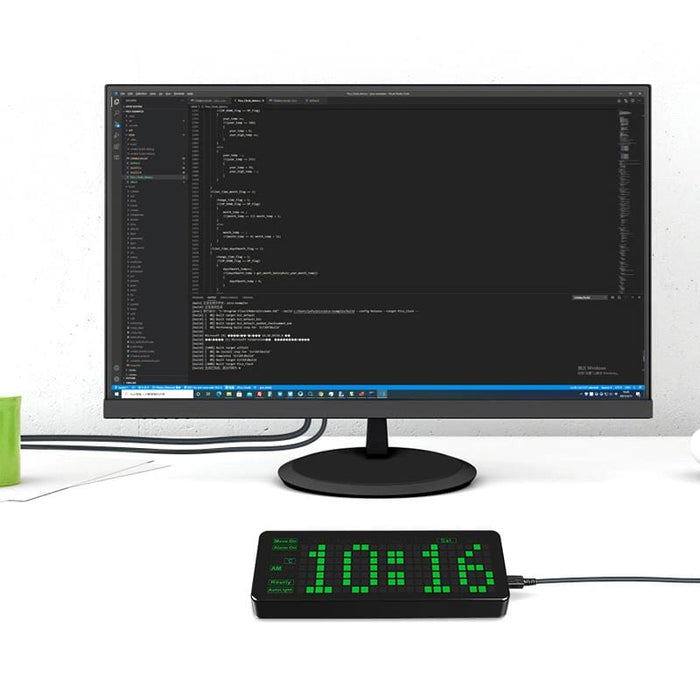

Open-source code and development tutorials are provided to help you get started and make your very own original electronic clock! The USB connection provides both power and a debugging interface for programming.

Not compatible with the Pico W (the taller debug header gets in the way!).

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our pre-soldered Picos).

Note: Some simple assembly required.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

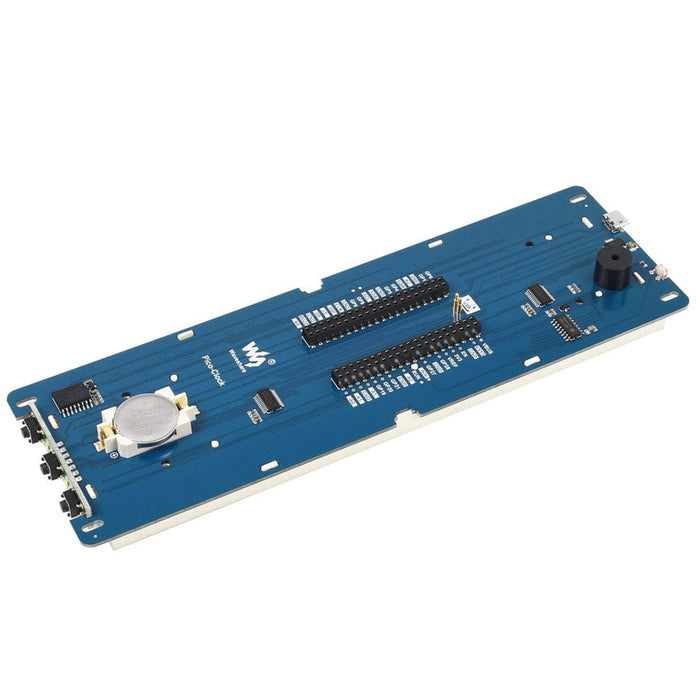

• Female header for Raspberry Pi Pico

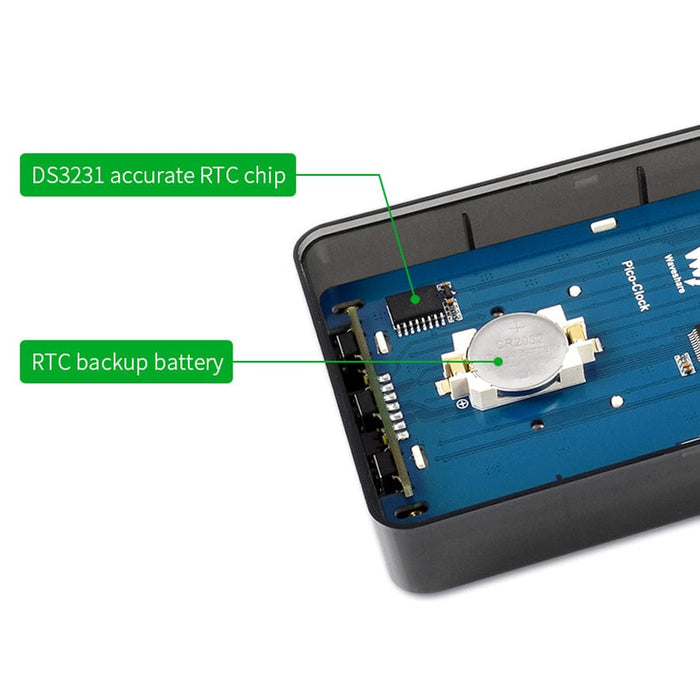

• Onboard high precision RTC chip DS3231 with backup battery, maintains accurate timekeeping when main power is off
• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week and Year with Leap-Year Compensation Valid Up to 2100
• Optional format: 24-hour OR 12-hour with an AM/PM indicator
• 2x programable alarm clock
• Digital temperature sensor output: ±3°C accuracy

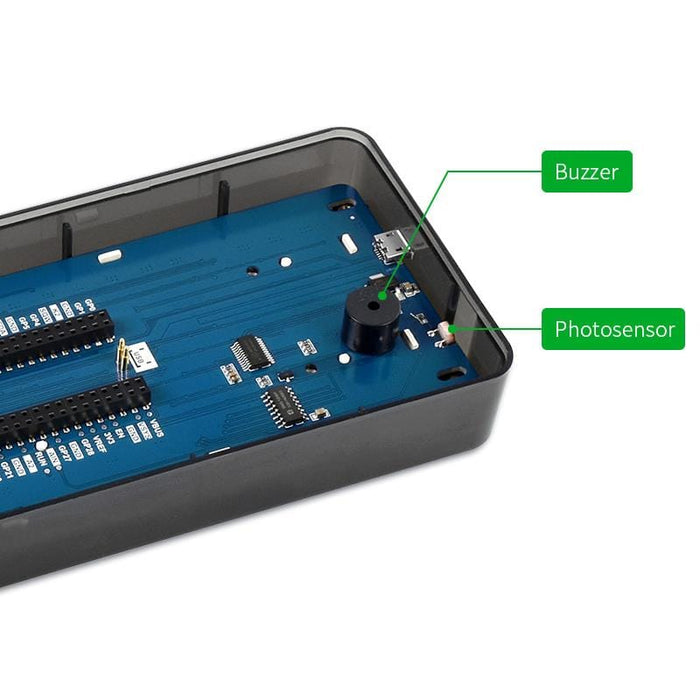

• Embedded photosensor for auto brightness adjustment - power saving and eye care
• Embedded buzzer for alarm or hourly ring etc
• 3x buttons for custom configuration
• Online development resources and manual (Raspberry Pi Pico C/C++ examples)

Resources

• Product Wiki and user guide

Dimensions and Information

Package Contents

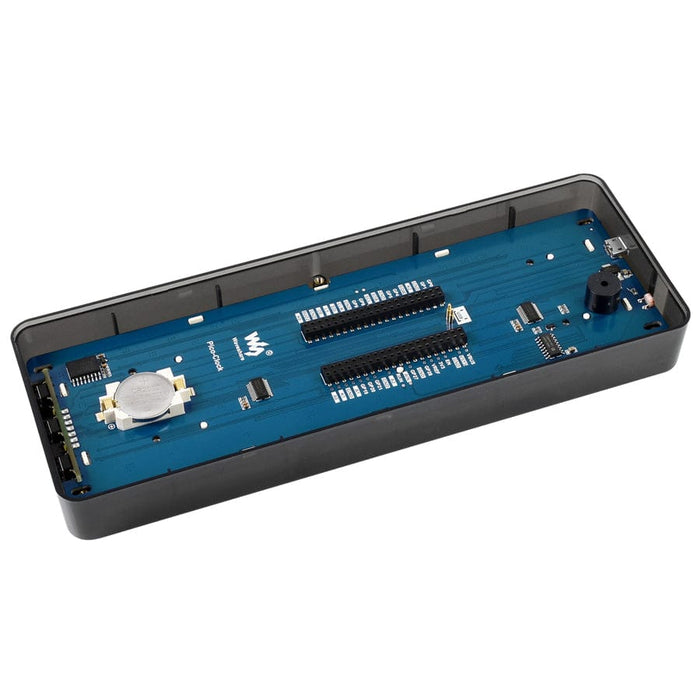

• 1x Pico Clock Module
• 1x Case
• 1x USB-A to micro-B cable 1.2m
• 1x Screws pack
• 1x CR2032 battery (installed)

Raspberry Pi Pico not included

Specifications

• Power Supply: 5V via USB
• Program / Debug Port: USB
• Outline Dimensions: 216 x 79 x 25mm
• Display Size: 190 x 60mm

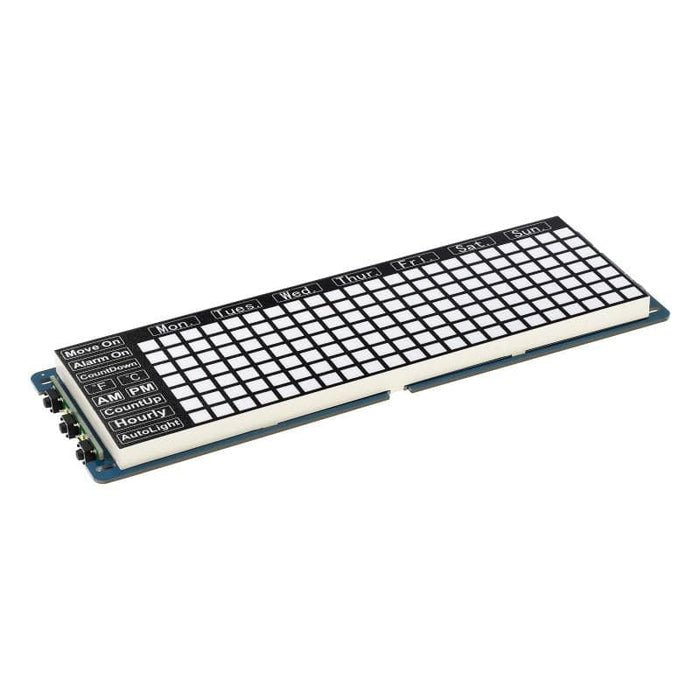

• LED Digit: Jade green
• Functions:

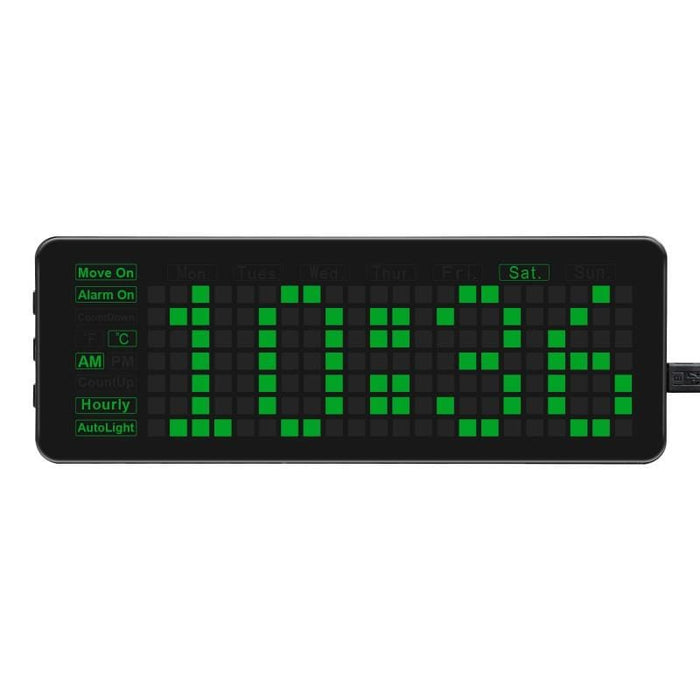

  • Scrolling display
  • Alarm/hourly ring
  • Temperature in ℉ or ℃ format
  • 12/24 time format
  • Day of week auto adjustment
  • Timekeeping without main power
  • Timer configuration
  • Manual/auto brightness adjustment
  • Button configuration

Revisions

• As of 17/10/2023: This product now ships with a CR2032 lithium battery
