ESP32-S2-DevKitC-1-N8R2 Development Board

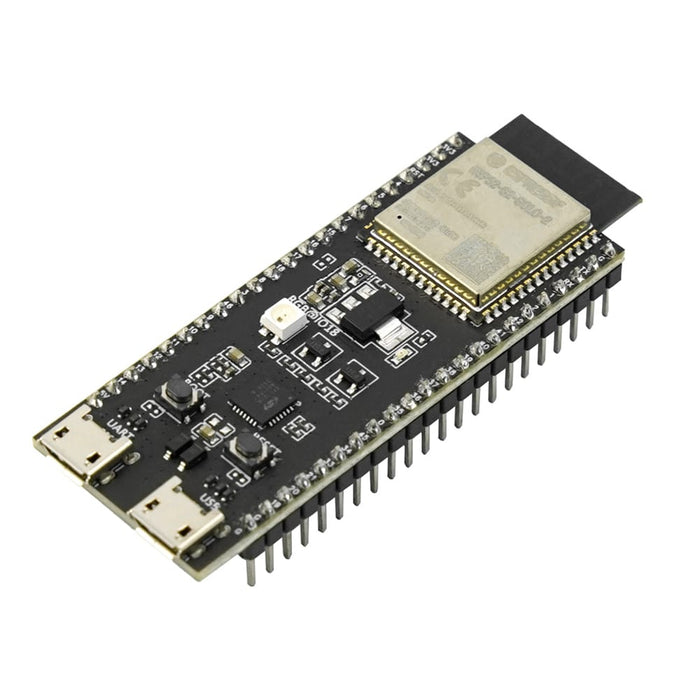

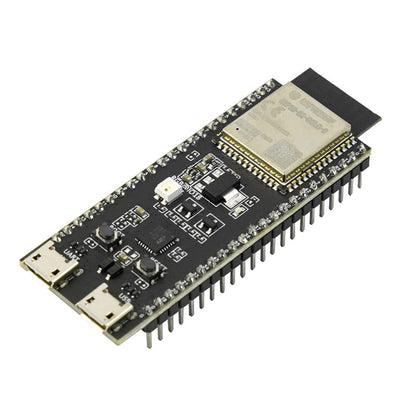

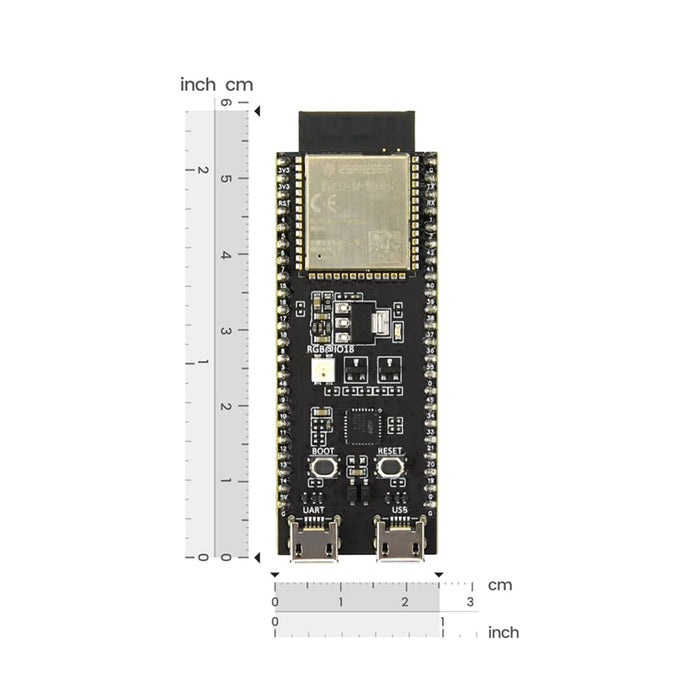

The ESP32-S2-DevKitC-1 is a straightforward development board that breaks out the ESP32-S2-SOLO module's I/O pins for easy prototyping, whether you're wiring peripherals directly or working on a breadboard.
ESP32-S2-DevKitC-1 is an entry-level development board equipped with ESP32-S2-SOLO module. Most of the I/O pins on the module are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount the development board on a breadboard.

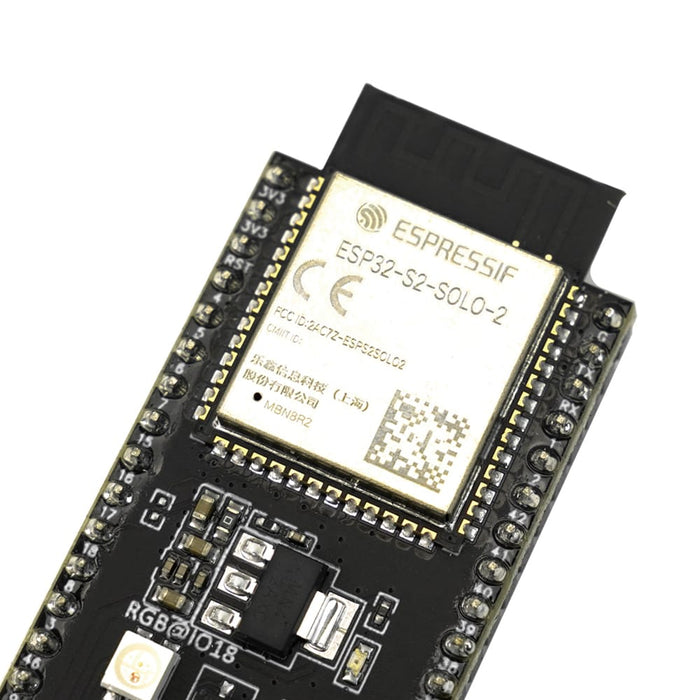

The ESP32-S2-SOLO is a general-purpose Wi-Fi MCU module integrated with ESP32-S2, which adopts a PCB on-board antenna.
Features
| Key Component | Description |
| ESP32-S2-MINI-1 | ESP32-S2-MINI-1 is a generic Wi-Fi MCU module that integrates ESP32-S2FH4 chip. ESP32-S2-MINI-1 comes with a PCB antenna. And the module features a 4 MB SPI flash. |
| 3.3 V Power On LED | Turns on when the USB power is connected to the board. |
| USB to UART Bridge | Single USB-UART bridge chip provides transfer rates up to 3 Mbps. |

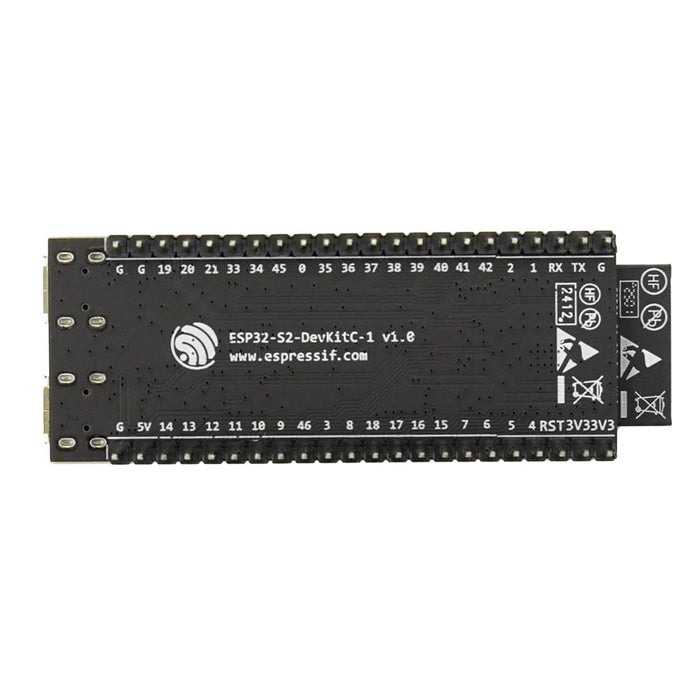

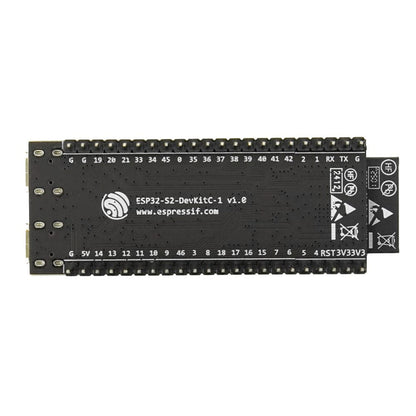

| I/O Connector | All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board. Users can program ESP32-S2FH4 chip to enable multiple functions such as SPI, I2S, UART, 12C, touch sensors, PWM etc. For details, please check the table below. |
| Reset Button | Reset Button |
| Micro-USB Port | USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-S2FH4 chip. |
| Boot Button | Download button. Holding down Boot and then pressing Reset initiates firmware Download mode for downloading firmware through the serial port. |
| RGB LED | Addressable RGB LED (WS2812), driven by GPIO18. |
| 5V to 3.3V LDO | Power regulator that converts a 5 V supply into a 3.3 V output. |
Specifications
- Integrated chip: ESP32-S2 or ESP32-S2R2, Xtensa® single-core 32-bit LX7 microprocessor
- 128KB ROM
- 320 KB SRAM
- 16 KB RTC SRAM
- 40 MHz integrated crystal oscillator
- Operating Voltage / Supply Voltage: 5V
- Recommended Operating Temperature Range: –40~85°C
Resources
- User Guides
- ESP32-S2-MINI-1 & ESP32-S2-MINI-1U Datasheet
Package Contents

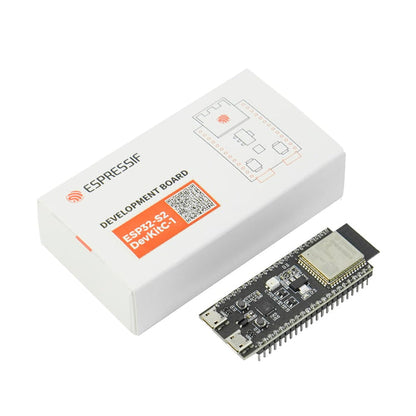

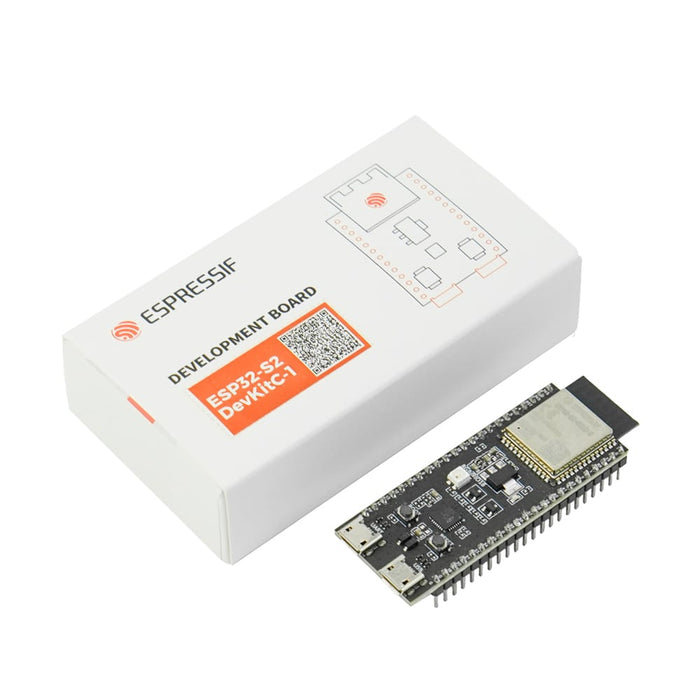

- 1x ESP32-S2-DevKitC-1-N8R2 Development Board
