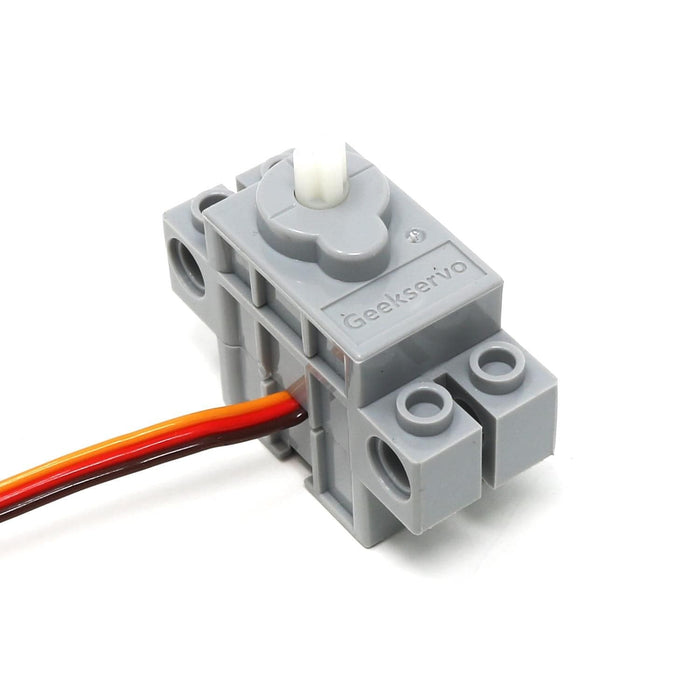

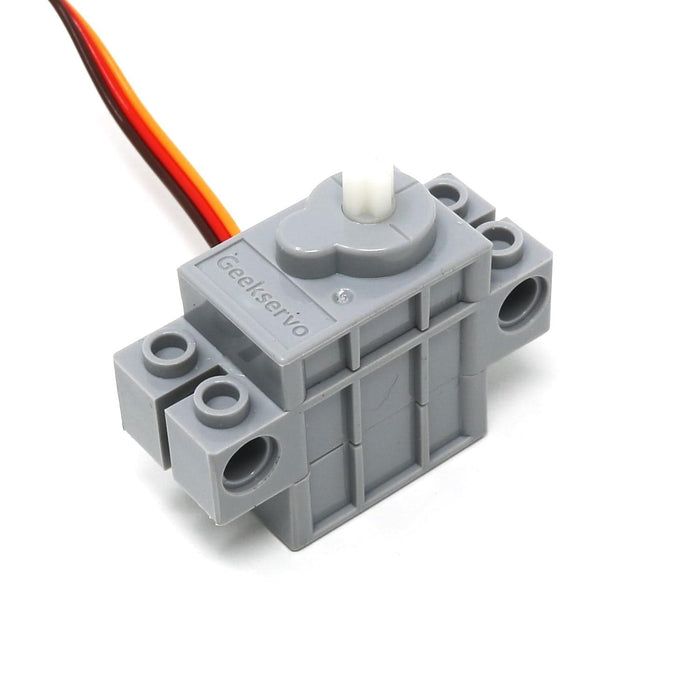

GeekServo Building Brick Compatible 180° Rotation Servo

These servos add a splash of colour and fun to your projects, whilst also having building brick compatible mounting points! This model is a 180-degree servo, great for projects requiring restricted movement.

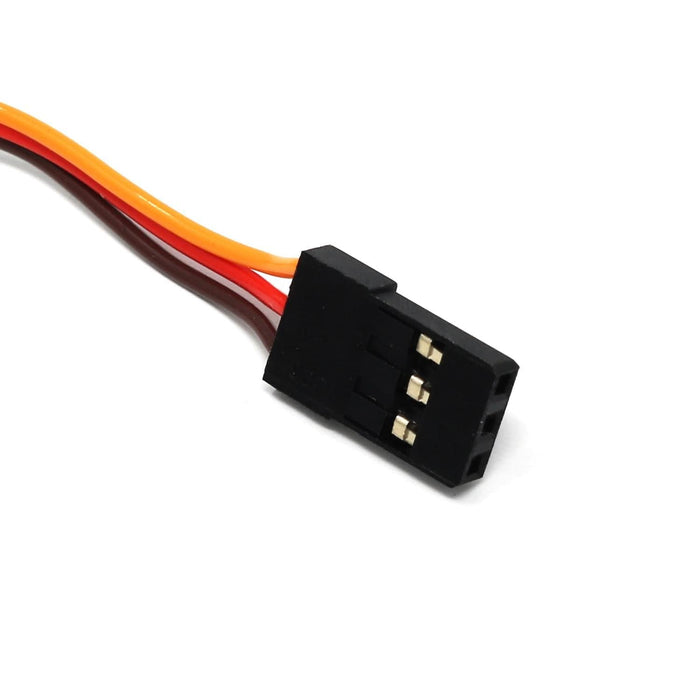

These servos use a traditional 3-pin connection found on almost all servos/servo controllers:

• Brown = GND
• Red = VCC
• Yellow = Signal

Check out the full range of GeekServo motors and servos here!

Building Brick Compatible!

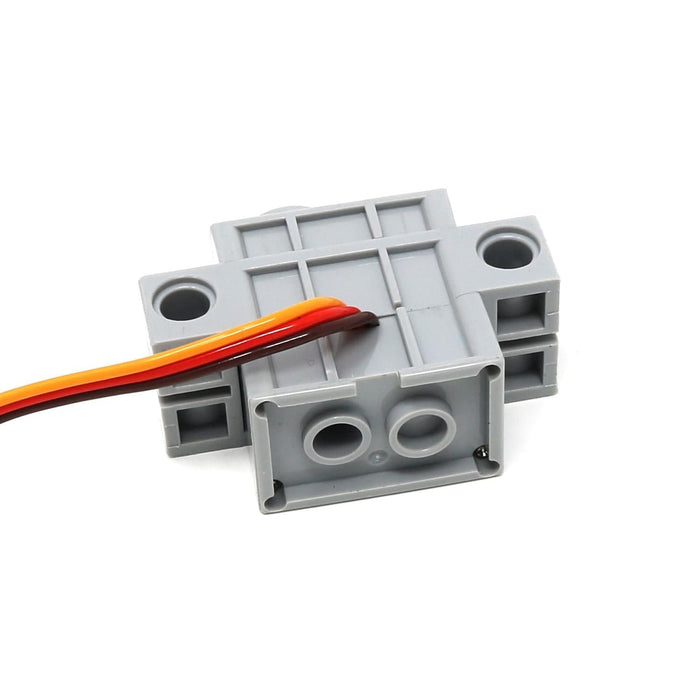

Simply sit the servo side mounts onto the nobbly part of building bricks, or lay the servo sideways for side mounting! The servos also have LEGO axle mounting holes for a different way to make your project.

These servos don't use standard servo horns, instead, they're rocking a building brick axle fitment meaning you can fit gears, wheels or other compatible axle mount parts!

Specification

• Rotation: 180 Degree
• Start Voltage: 2.5V
• Working Voltage: 3.3-6.0V
• Rated Voltage: 4.8V
• Rated Current: 100mA
• Stall Current: 550mA
• Stall Torque (max): 500g.cm
