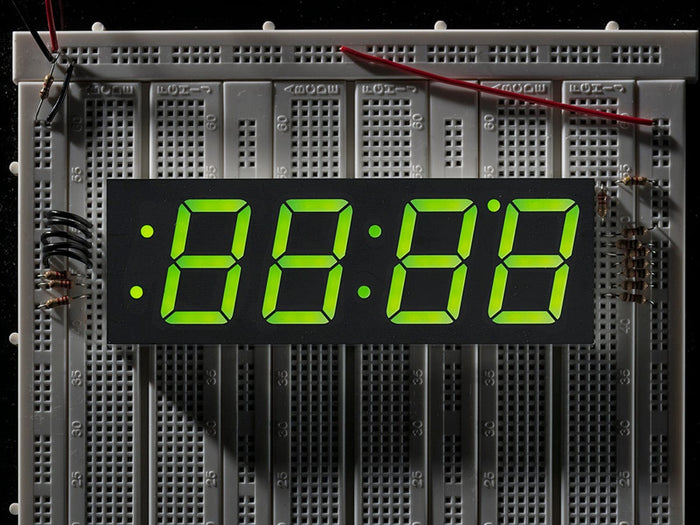

Green 7-segment clock display - 1.2" digit height [Discontinued]

I like big seven-segment displays and I cannot lie! Design a clock, timer or counter into your next project using our pretty, candy-bar sized 4-digit seven-segment display. These bright crisp displays are good for adding numeric output. Besides the four 7-segments, there is a top right dot (perhaps useful as a degrees symbol) and two sets of colon-dots (good for time-based projects).

These are 18mcd bright per segment. Each segment is made of two LEDs in series for even coloring (check the datasheet for a diagram). You can drive these with less current to get the same brightness to save power, or crank them up to 20mA and have them at their brightest.

These displays are multiplexed, common-cathode. What that means it that you can use a 1:50)

Technical Details
