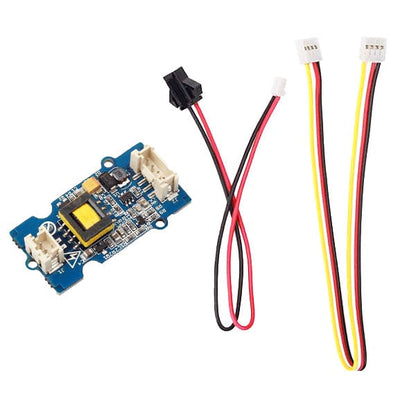

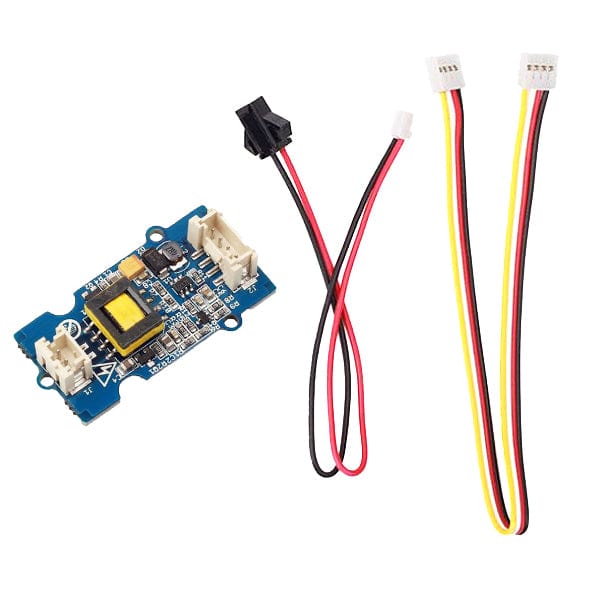

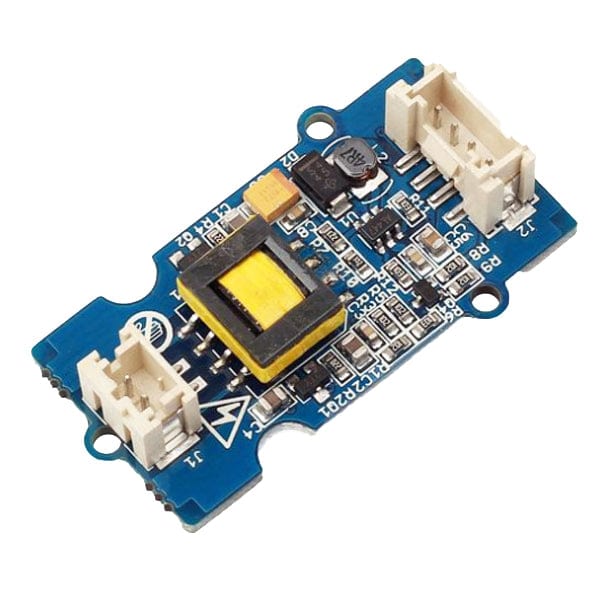

Grove - EL Driver is designed for driving EL Wires.It integrates a very small inverter to drive the EL Wire, so you can easily light up the EL Wire with just one single Grove cable.

Features:

  • Grove compatible interface
  • 3.3V/5V Compatible
  • Integrated Inverter Transformer
  • Product number: Seeed 105020005

Specifications:

  • Input Current: 300mA Max (According to the load)
  • Input Voltage 3~5Vdc
  • Output Voltage:70~110Vpp
  • Output frequency: 8~20kHz
  • Supported max EL Capacitance: 15nF
