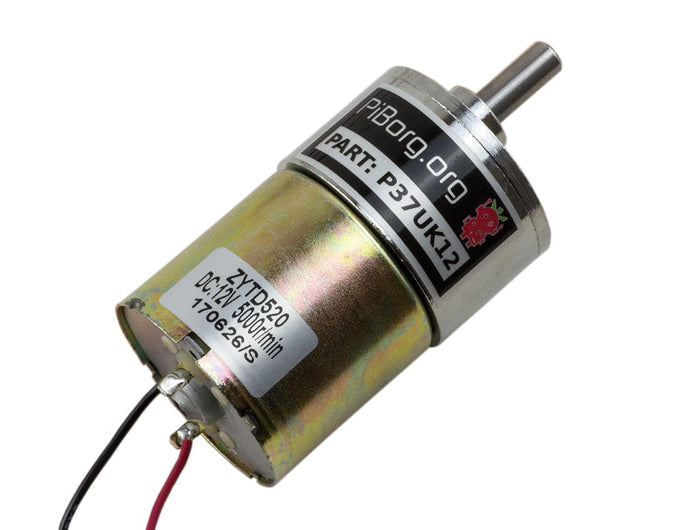

PiBorg 37D Motor - 12V 300RPM [Discontinued]

This is a 12V 300RPM 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots!

PiBorg motors come with wires pre-soldered, so they're perfect for connecting straight to your project.

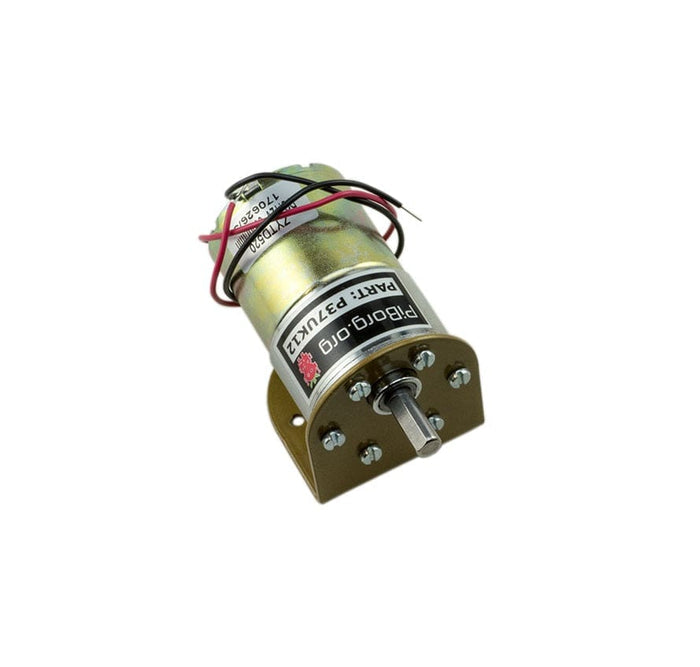

This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount.

Please Note. This purchase is for the motor only.

Technical Specification

• Part No. P37UK12
• Voltage: 12V
• Gearbox Reduction Ratio: 17.4
• No Load Speed (RPM): 300
• Rated Speed (RPM): 205
• Rated Torque (kg.cm): 1.02
• Rated Current (A): 0.716
• Shaft Diameter: 6mm
• Shaft Length: 14mm
• Motor Diameter: 37mm
• Motor Length:57mm
