SHT-10 Mesh-protected Weather-proof Temperature/Humidity Sensor [Discontinued]

SHT-10 Mesh-protected Weather-proof Temperature/Humidity Sensor [Discontinued]

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
Regular price $33.37
Regular price $33.37 Sale price $49.80
SAVE 32% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

SHT-10 Mesh-protected Weather-proof Temperature/Humidity Sensor [Discontinued] by The Pi Hut - The Pi Hut

SHT-10 Mesh-protected Weather-proof Temperature/Humidity Sensor [Discontinued]

Regular price $33.37
Regular price $33.37 Sale price $49.80
SAVE 32% Sold out

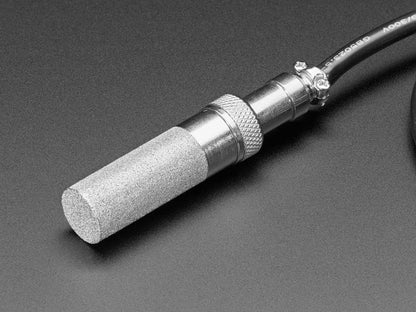

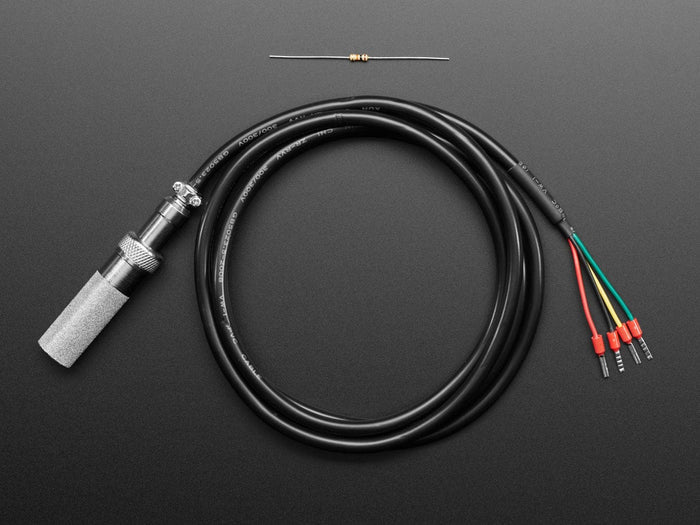

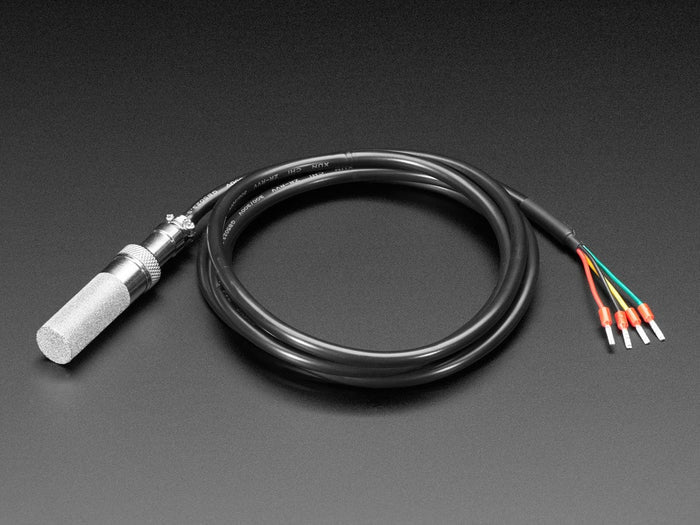

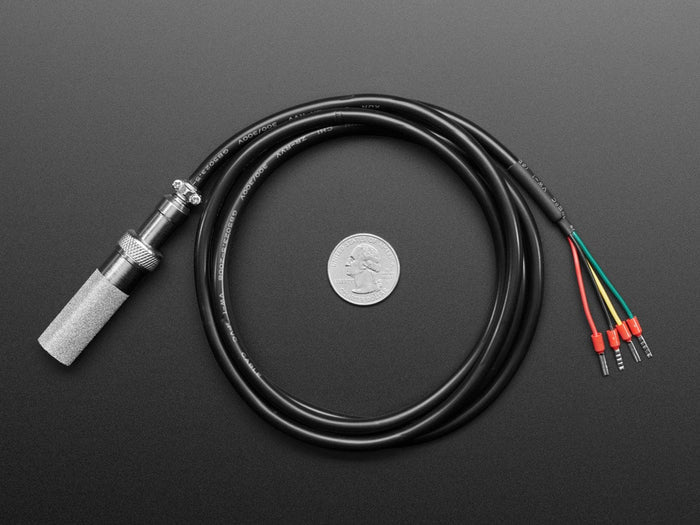

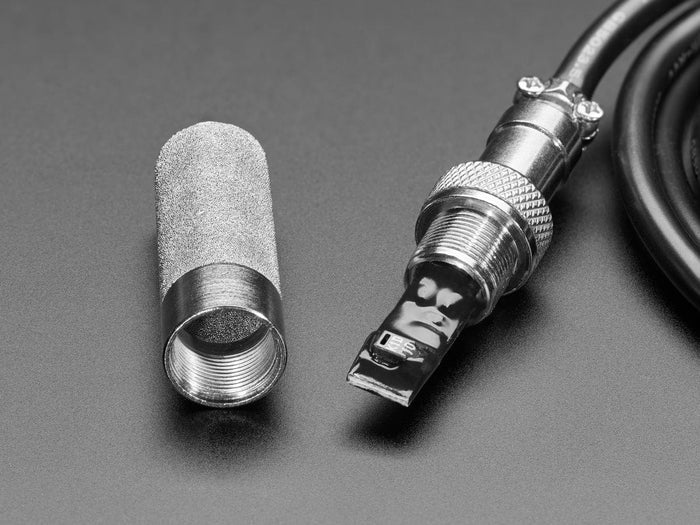

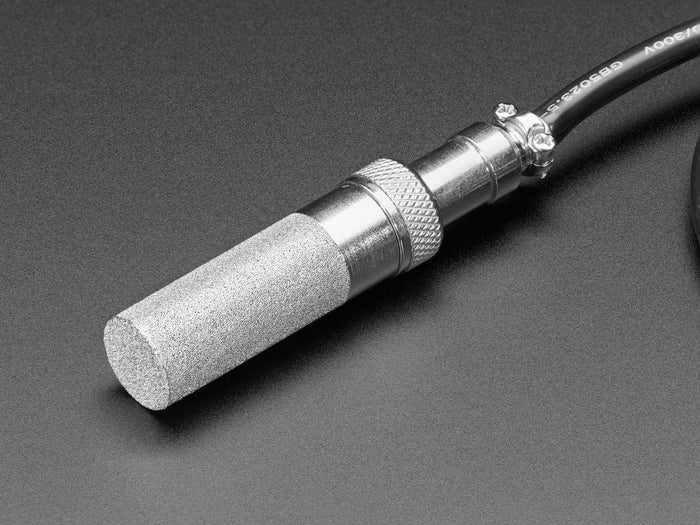

Take your next outdoor sensor project to the next level with a SHT-10 based temperature/humidity sensor. The sensor includes a dual-use sensor module from Sensirion in a sintered metal mesh encasing. The casing is weatherproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity outside. While it is designed to be submersible in water, it's always best to avoid long-term (over 1 hour at a time) submersion, and it obviously would only give you temperature readings. For that, 8:52)

Technical Details

  • Body dimensions: 14mm diameter, 50mm long
  • Cable length: 1 meter
  • Humidity readings with 4.5% accuracy
  • Temperature readings with 0.5°C accuracy
  • Working Temperature/Humidity range: -40°C ~ 120°C, 0~100% RH
  • All other sensor specifications are in the SHT10 Datasheet
  • Sensor datasheet

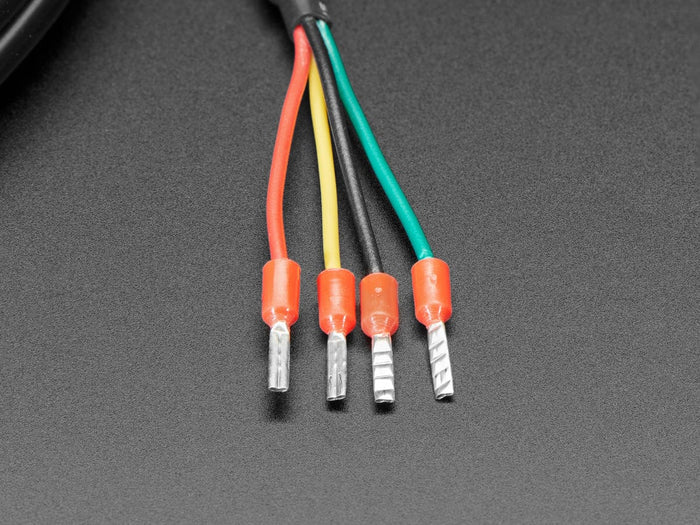

Old version with four color wires: Red = VCC (3-5VDC), Black or Green = Ground, Yellow = Clock, Blue = Data
or
Newer version with four color wires: Red = VCC (3-5VDC), Black = Ground, Yellow = Clock, Green = Data
