SMT Breakout PCB for SOIC-14 or TSSOP-14 - 6 Pack

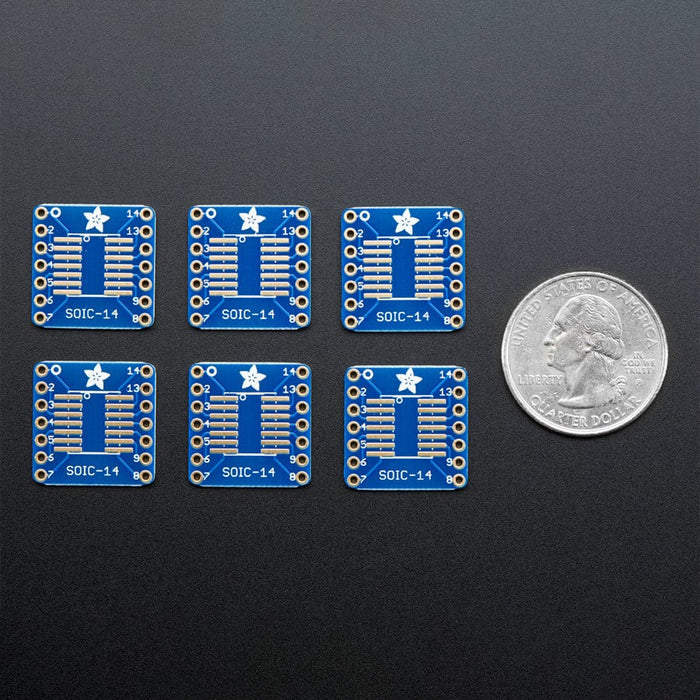

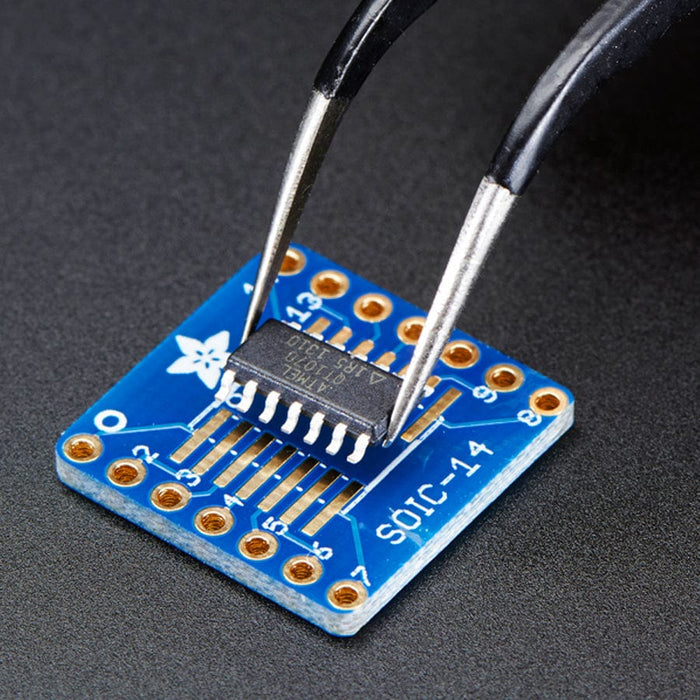

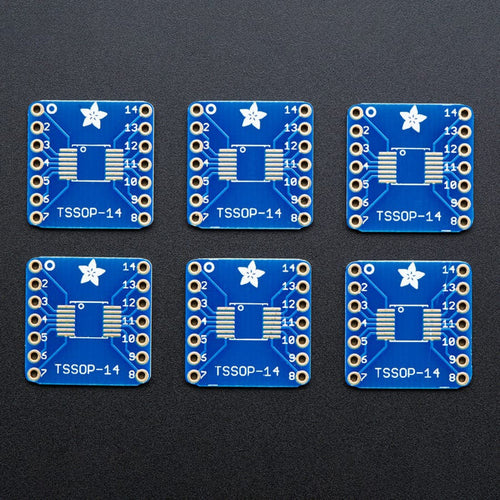

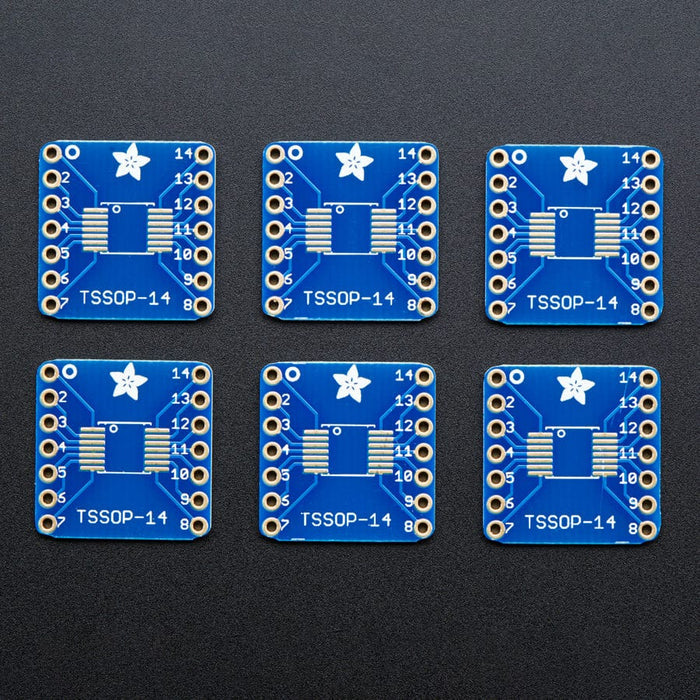

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 14-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 14-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with six PCBs; each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip but the pin numbering won't be right, so use care.

Chip is NOT included

Note: The board does not include headers, so why don't you pick some up?
