SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!

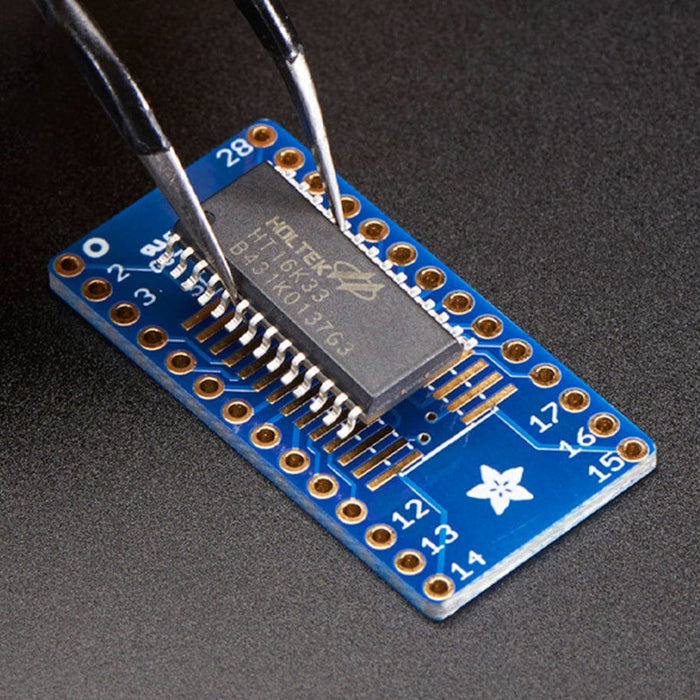

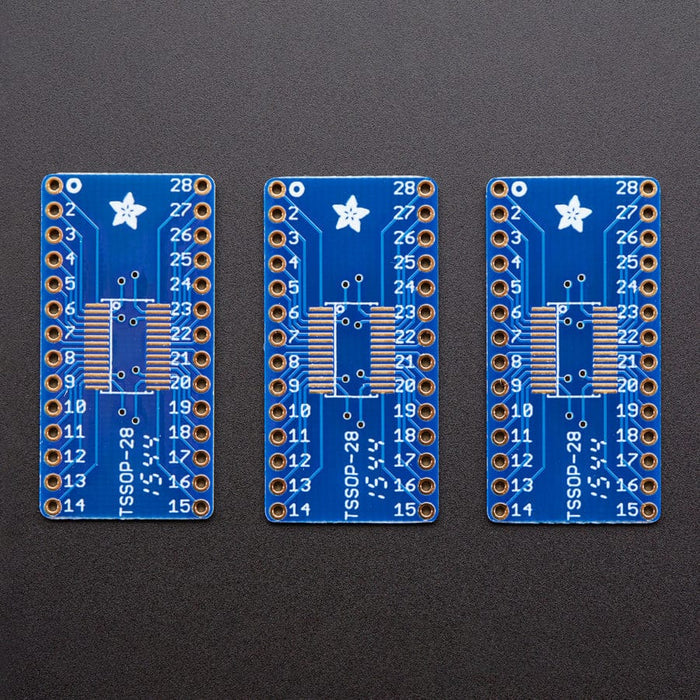

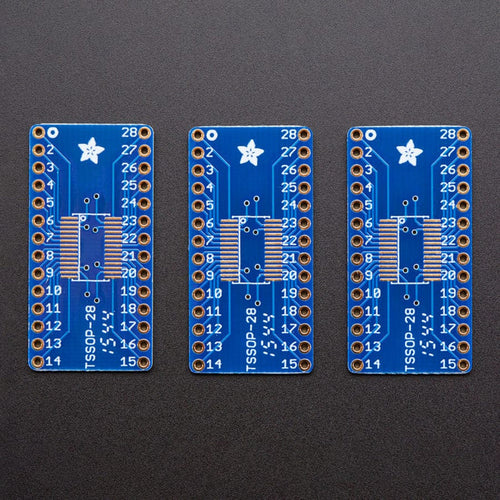

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 28-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 28-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.

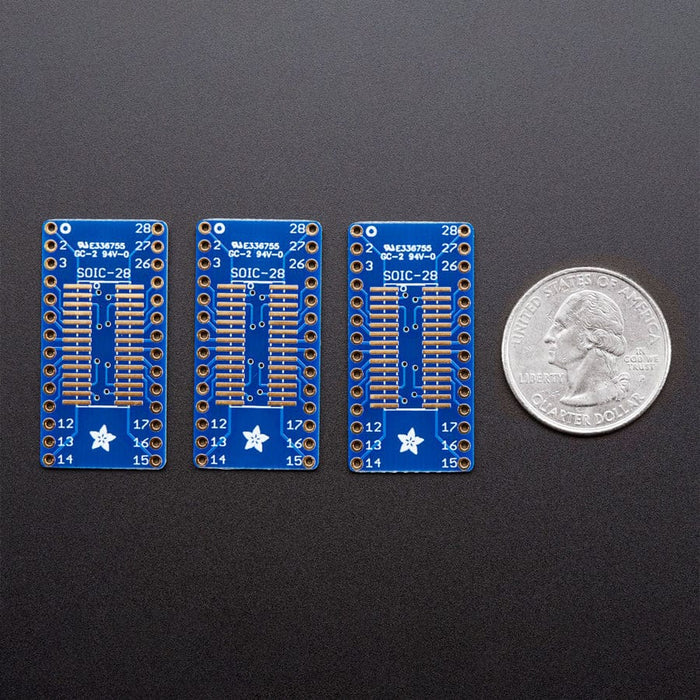

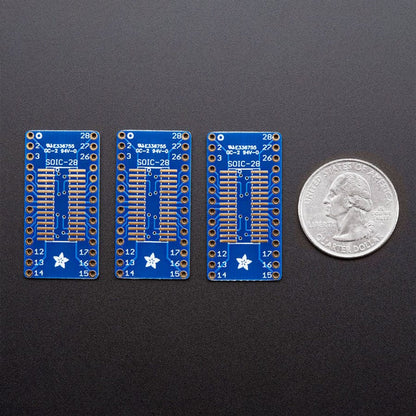

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium, or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can, of course, use a smaller chip, but the pin numbering won't be right, so use care.

Chip is NOT included

Note: It does not include headers, so why don't you pick some up?

Resources

• Overview and Tutorial
