SparkFun QwiicBus Kit

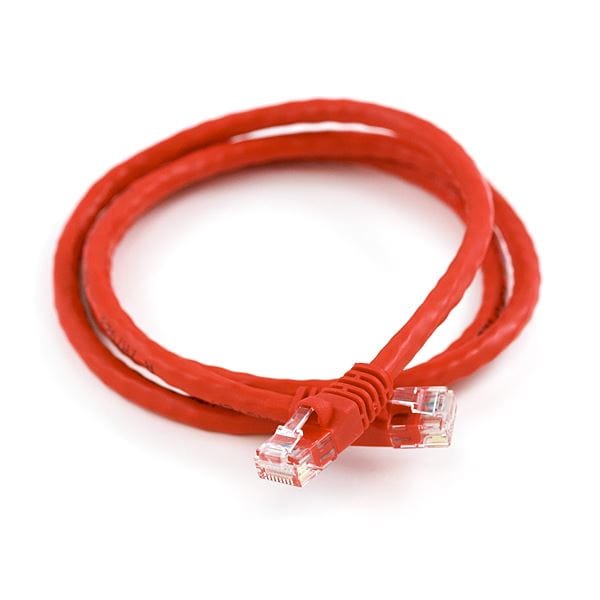

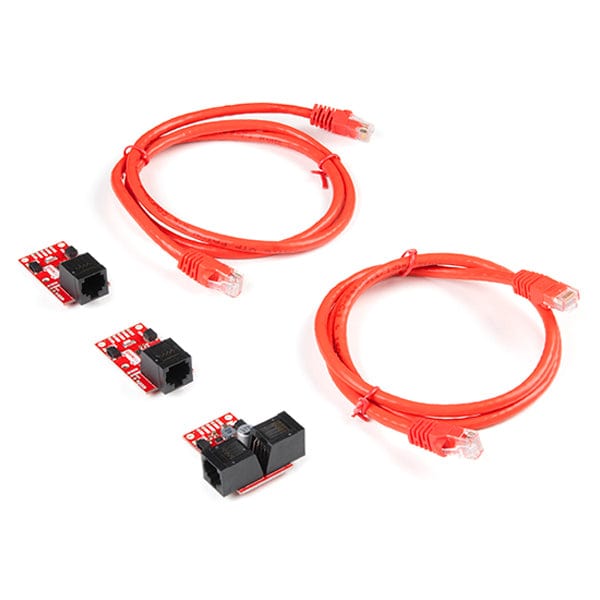

The SparkFun QwiicBus Kit comes with everything you need to get started with the SparkFun QwiicBus system in one handy package. The kit includes two QwiicBus EndPoints, one MidPoint and two 3ft Ethernet cables.

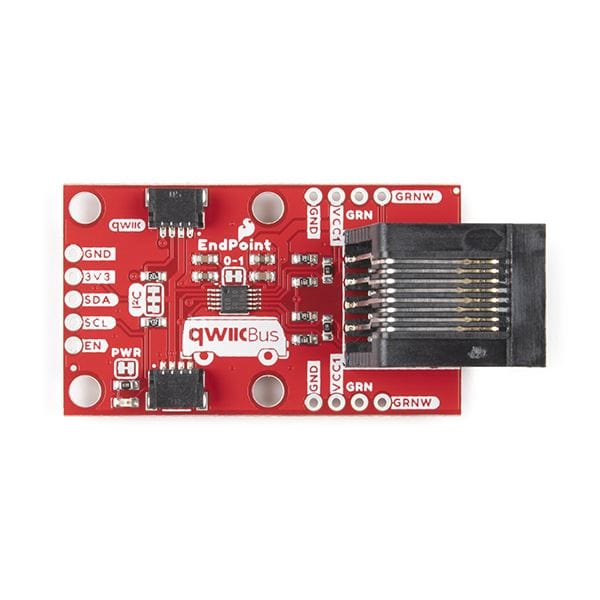

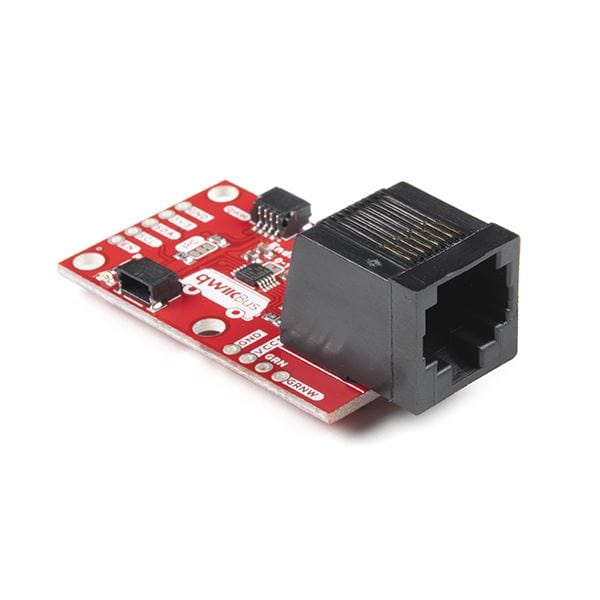

The SparkFun QwiicBus EndPoint is the fastest and easiest way to extend the range of your I²C communication bus. Both boards use NXP’s PCA9615 IC, which converts the two default I²C signals into four differential signals, two for SCL and two for SDA. The differential signals are sent over an Ethernet cable, which attaches to the breakout through the on-board RJ-45 connectors The differential signalling allows the I²C signals to reach distances of up to 100ft. while still maintaining their signal integrity! To make it even easier to get your readings, all communication is enacted exclusively via I²C, utilizing our handy Qwiic system so no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

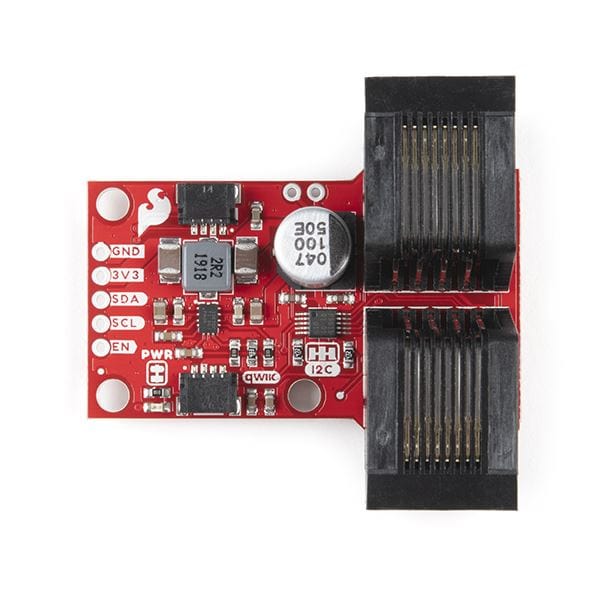

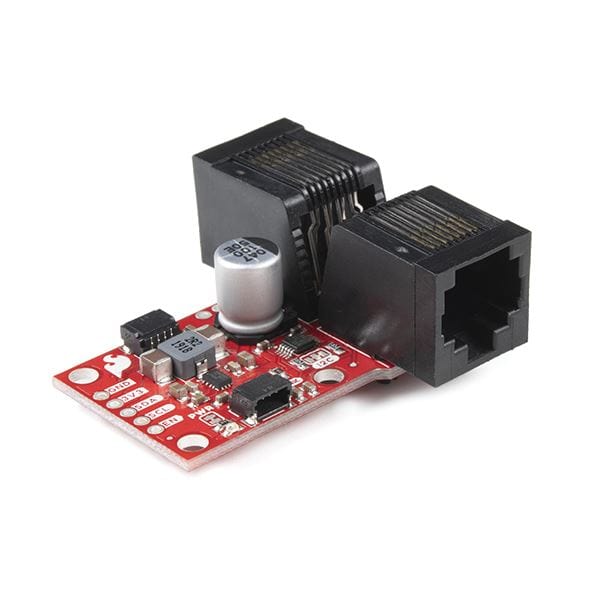

The QwiicBus MidPoint works in tandem with the QwiicBus Endpoint so you can easily tap into it to drop in devices wherever you would like.

Get Started with the Sparkfun QwiicBus Guide

QwiicBus General Documentation

• Hookup Guide
• Datasheet (PCA9615)
• Qwiic Info Page

QwiicBus EndPoint Documentation

• Schematic
• Eagle Files
• Dimensional Drawing
• Hardware GitHub Repository

QwiicBus MidPoint Documentation

• Schematic
• Eagle Files
• Dimensional Drawing
• Datasheet (LMR33630)
• Hardware GitHub Repository
